Industrial Network Switches Range

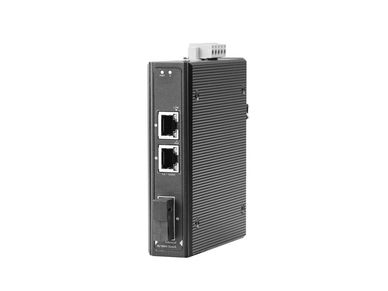

2-Port Network Switch OPN-IPS31032PF
6-Port Network Switch OPN-IPS31084PF
4-Port Network Switch OPN-IPS31064P
- Unmanaged switch, it has 2*10/100M PoE ports and 1*155M SC port.
- Port 1-2 can support IEEE802.3af/at PoE standard single port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
4-Port Network Switch OPN-IPS31064P
6-Port Network Switch OPN-IPS31084PF
4-Port Network Switch OPN-IPS31064P
- Unmanaged switch, it has 6*10/100M adaptive RJ45 ports.
- Port 1-4 can support IEEE802.3af/at PoE standard single port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
6-Port Network Switch OPN-IPS31084PF
6-Port Network Switch OPN-IPS31084PF
6-Port Network Switch OPN-IPS31084PF
- Unmanaged switch, it has 6*10/100M RJ45 ports and 2*155M SC slot port.
- Port 1-4 can support IEEE802.3af/at PoE standard. Single-port PoE power reaches 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
8-Port Network Switch OPN-IPS31128PFB
8-Port Network Switch OPN-IPS31128PFB
6-Port Network Switch OPN-IPS31084PF
- Unmanaged switch, it has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports and 2*1000M SFP slot ports.
- Port 1-8 can support IEEE802.3af/at PoE standard single port PoE power is 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
2-Port Network Giga Switch OPN-IPS33042PF
8-Port Network Switch OPN-IPS31128PFB
4-Port Network Giga Switch OPN-IPS33064PF
- Unmanaged switch, it has 2*10/100/1000M PoE ports and 2*1000M SFP fiber slot ports.
- Port 1-2 can support IEEE802.3af/at PoE standard. single port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
4-Port Network Giga Switch OPN-IPS33064PF
8-Port Network Switch OPN-IPS31128PFB
4-Port Network Giga Switch OPN-IPS33064PF
- Unmanaged switch, it has 4*10/100/1000Base-T RJ45 ports and 2*1000Base-X SFP fiber slot ports.
- Port 1-4 can support IEEE802.3af/at PoE standard, single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
8-Port Network Giga Switch OPV-IPS33108PF
8-Port Network Giga Switch OPV-IPS33108PF
- Unmanaged switch, it has 8*10/100/1000Base-T adaptive RJ45 ports and 2*1000Base-X uplink SFP slot ports.
- Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
4-Port Network Giga Switch OPN-IPS33064PFM
8-Port Network Giga Switch OPV-IPS33108PF
- Managed switch, it has 4*10/100/1000M adaptive RJ45 ports and 2*100/1000M SFP fiber ports.
- Port 1-4 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
8-Port Network Giga Switch OPN-IPS33010PFM
- Managed switch, it has 8*10/100/1000M PoE ports and 2*100/1000M SFP fiber ports.
- Port 1-8 can support IEEE802.3af/at POE standard. single port POE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
8-8 Port Network Giga Switch OPN-IPS33168PFM
8-8 Port Network Giga Switch OPN-IPS33168PFM
- Managed switch, it has 8*10/100/1000M adaptive RJ45 ports and 8*100/1000M SFP fiber ports.
- Port 1-8 can supports IEEE 802.3 af/at PoE standard. Single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
16-Port Network Giga Switch OPN-IPS33016PM
8-8 Port Network Giga Switch OPN-IPS33168PFM
16-Port Network Giga Switch OPN-IPS33016PM
- Managed switch, it has 16*10/100/1000Base-T adaptive RJ45 ports.
- Port 1-16 supports IEEE 802.3 af/at PoE standard, and the single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
24-Port Network Giga Switch OPN-IPS33024PM
8-8 Port Network Giga Switch OPN-IPS33168PFM
16-Port Network Giga Switch OPN-IPS33016PM
- Managed switch, it has 24*10/100/1000Base-T adaptive RJ45 ports.
- Port 1-16 can support IEEE 802.3 af/at PoE standard, and the single-port PoE power up to 30W
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
High Power Managed Network Switches
4-Port Network Giga Switch OPN-IPS33064PFM-bt
- Managed switch, it has 4*10/100/1000M adaptive RJ45 ports and 2*100/1000M SFP fiber ports.
- Port 1-4 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 90W recommended power supply 240W.
- Operating T/H: -40~+75°C, 5%~95% RH Non condensing
RACK MOUNT INDUSTRIAL SWITCHES
16-port Gigabit Managed Industrial PoE Switch OPN-IPS33018PFM
16-port Gigabit Managed Industrial PoE Switch OPN-IPS33018PFM
16-port Gigabit Managed Industrial PoE Switch OPN-IPS33018PFM
- 16*10/100/1000Base-T PoE ports (Data/Power)
- 2*100/1000Base-X uplink SFP fiber slot ports (Data)
- 1 * RS232 console port(115200,N,8,1)
- Max Power Per Port: 30W, IEEE802.3af/at.
- Operating T/H: -40~+85°C;5%~90% RH Non condensing
24-port Gigabit Managed Industrial PoE Switch OPN-IPS33026PFM
16-port Gigabit Managed Industrial PoE Switch OPN-IPS33018PFM
16-port Gigabit Managed Industrial PoE Switch OPN-IPS33018PFM
- 2*100/1000M uplink SFP ports (Data).
- 24*10/100/1000Base-T PoE ports (Data/Power).
- 1*Console port (115200, N, 8,1).
- Max Power Per Port: 30W, IEEE802.3af/at.
- Operating T/H: -40~+85°C;5%~90% RH Non condensing
24-Port/8-Port/4-port Managed Industrial PoE Switch OPN-IPS36036PFM
48-Port 10G Uplink Managed Industrial PoE Switch OPN-IPS36048PFM
48-Port 10G Uplink Managed Industrial PoE Switch OPN-IPS36048PFM
- 24*10/100/1000Base-T PoE ports (Data/Power)
- 8*100/1000Base-X SFP fiber slot ports
- 4*1/10G uplink SFP+ fiber slot ports (Data)
- 1*Console RS232 port (115200,N,8,1)
- 1 *AC100-240V power input port
- 2 * DC12-48V power input ports ( support anti-reverse protection)
- Operating T/H: -40~+80°C;5%~90% RH Non condensing
- Power-off alarm switch(FAULT)
- Optical Fiber Port: Gigabit SFP /10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module LC)
- PoE Management: PoE working status, Delay start of power supply, PoE output priority configuration, Scheduling of PoE operation and time, Total power limit of PoE power supply, PoE output power allocation, off& af &at
- Max Power Per Port: 30W, IEEE802.3af/at
- Total PWR / Input Voltage: 400W (AC100-240V)
48-Port 10G Uplink Managed Industrial PoE Switch OPN-IPS36048PFM
48-Port 10G Uplink Managed Industrial PoE Switch OPN-IPS36048PFM
48-Port 10G Uplink Managed Industrial PoE Switch OPN-IPS36048PFM
- 48*10/100/1000Base-T PoE ports (Data/Power)
- 4*1/10G uplink SFP+ slot ports (Data)
- 1 * console port(115200,N,8,1)
- Operating T/H: -40~+80°C;5%~90% RH Non condensing
- Total PWR / Input Voltage: 600W (AC100-240V)
- PoE Management: Total power limit of PoE power supply, PoE output power allocation, off& af &at, PoE output priority configuration, PoE working status, Delay start of power supply, Scheduling of PoE operation and time
- Switching Capacity: 598Gbps
- Network Management Type: L2+
- SFP Slot Port: 1/10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi mode, single fiber / dual fiber optical module LC).
- Max Power Per Port: 30W; IEEE802.3af/at.
- Layer 3 Features: L2+ Network management, IPV4/IPV6 management, L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs
