PoE Devices

Gigabit PoE Injector OPN-PSE3301DCS

3-port 10/100M PoE Extender OPN-PSE-PD3121

Gigabit PD PoE Splitter OPN-PD3301S

Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out )
1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data)
Max Power Per Port: 30W, IEEE802.3 af/at.
Total PWR / Input Voltage: 30W (DC12-52V).
Power Supply: External power adapter AC 100 ~ 240V 50-60Hz 0.56A.
-20~+55°C, 5%~90% RH Non condensing.

Gigabit PD PoE Splitter OPN-PD3301S

3-port 10/100M PoE Extender OPN-PSE-PD3121

Gigabit PD PoE Splitter OPN-PD3301S

Gigabit rate self-adaption, 8P copper cable RJ45 port.
2*10/100/1000Base-T RJ45 ports (Data)
1*DC5521 power socket(Power)
Output Voltage: Default 12VDC ±0.5V, optional 5VDC ±0.5V
Input Voltage: 44-57VDC
-20~+55°C;5%~90% RH Non condensing.
Short circuit, over-current and over-temperature protection.
Output power is up to 24W.
Output voltage selection switch

3-port 10/100M PoE Extender OPN-PSE-PD3121

3-port 10/100M PoE Extender OPN-PSE-PD3121

10/100M fast Ethernet access, uplink PD RJ45 port.
2*10/100Base-TX PoE ports (Data/Power)
1*10/100Base-TX uplink PD RJ45 port (Data/Power)
Max Power Per Port 25W, IEEE802.3 af/at (Limited by max input power of at)
Total PWR / Input Voltage: 25W (PoE)
-20~+55°C, 5%~90% RH Non condensing.

PoE Injector Giga 60W OPN-PSE3301DC

PoE Injector Giga 95W OPN-PSE3501G

1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data).
Max Power Per Port: 60W, IEEE802.3af / at/bt.
Total PWR / Input Voltage: 65W /52VDC
-20~+55°C, 5%~90% RH Non condensing.
Power Supply: External power adapter, DC input voltage: DC48-57V

PoE Injector Giga 95W OPN-PSE3501G

PoE Injector Giga 95W OPN-PSE3501G

PoE Injector Giga 95W OPN-PSE3501G

1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data)
Max Power Per Port: 95W, IEEE802.3af / at/bt.
Total PWR / Input Voltage: 110W/52VDC
-20~+55°C, 5%~90% RH Non condensing.
Power Supply: External power adapter, DC input voltage: DC48-57V

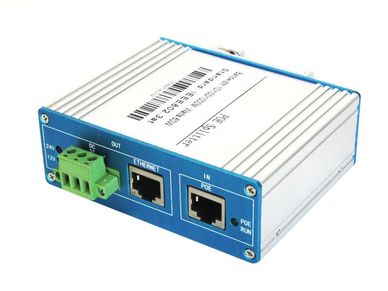

PoE Splitter with DC OPN-PD3401G

PoE Injector Giga 95W OPN-PSE3501G

PoE Injector Giga 95W OPN-PSE3501G

1*10/100/1000M bt PoE PD RJ45 port (Data/Power)
1*10/100/1000M uplink RJ45 port(Data)
Input Voltage: DC48-57V
Max Output Power/Voltage: 60W/ DC12V ±0.5V or 60W/ DC24V ±0.5V.
-20°C~+55°C, 5%~90% RH Non condensing
Plug and play, no configuration, simple and convenient.

PoE Injector Giga desktop

PoE Injector Giga desktop

PoE Injector Giga desktop

Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ).
1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data).
-20~+55°C, 5%~90% RH Non condensing
Max Power/Port: 30W, IEEE802.3af/at
Input: 18W /(AC100-240V)
